Now for the tutorial!!
I use Photoshop CS2 but I am sure you can adapt it for your own software. It is quite a long tutorial and I hope that I explain it clearly, forgive me if I don’t!!
You can use it for personal or commercial use..just don't claim it as your own!!
So let’s get started!
1. Open the photograph that you want to use. Check the image size and do any cropping you want to make before we start. (I had mine at 300dpi, 9 inches x 5 inches. You can always scale it down after it’s framed, but it‘s easier to work on at this size).

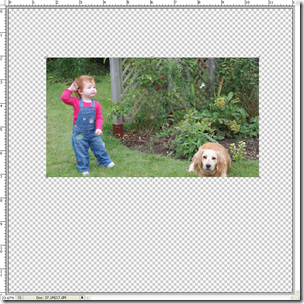

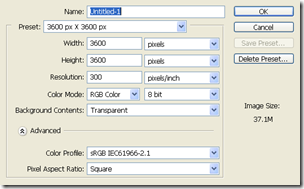

2. Now open a new file 3600 x 3600, 300dpi, RGB color, Transparent and move your photograph into the new file.
3. To split the photo we need to make a template. We’re going to split the photo into 3 pieces, you could make this 2 or 4...it’s up to you, but for now we will do three bits.
Select the Rectangle Tool and make sure your colours are the default black and white. (If they’re not then press D to reset them.)
Before you draw out the rectangle, check in the top tool bar that you have selected the first icon in the group of three, the shape layer icon.
4. Check the width of your photograph, we need to draw out a rectangle over one third of the photograph. As my photo is 9 inches wide mine needs to be 3 inches wide and the height of the photo.
So starting at the left end of the photo drag out a black rectangle over a third of it. This is what it mine looks like.
And this is what your layers palette should like, showing your photo layer and a shape layer.
5. We have the first part of the template now we need to duplicate this layer twice to give us the three pieces of our template.
There are several ways you can do this, my favourite way is to make sure that the shape layer is the active layer and then right click on the layer and pick Duplicate layer from the fly out menu.
At this point I always rename the layers for easy recognition.
So I would start at the bottom of the black shape layers that will form our template and rename them as left, middle and right . That way I can find them quickly.
6. Now we need to position the rectangles over the photo. At the moment they are in a stack and we need them to cover the whole photo before we can use them to cut it up.
Select the right rectangle (Shape 1 copy) and holding down the shift key move it over to the right into the middle of the photo. (Holding down the shift key whilst you drag will make sure that the layer stays inline with the other layers as you drag it).
Now select the middle rectangle (Shape 1 copy 2) and drag it to the right end of the photo. You should now have covered the whole photo with these three layer and it will no longer be visible.
7. With the left rectangle layer active right click, and pick Rasterize from the drop down menu.
(You’ll notice that this changes how the layer looks in the layer palette and you now only have one black rectangle showing.)
Repeat this for the other two rectangle layers.
8. Click on the left rectangle layer to make it active, and then hold down the CRTL key and click the layer icon this will give you marching ants around the shape.
With the marching ants still active click on the original photo layer to make that layer active.
Now press CTRL +J.
This will promote the left part of the photo only onto a new layer of it’s own without altering the original photo.
Repeat this for the other two rectangles (middle and right) so that you have three new layers each with a part of your photo.
You should now have 7 layers: 3 rectangle template layers, 3 photo layers and the original photo layer.
Click the eye on the original photo layer to make it invisible.

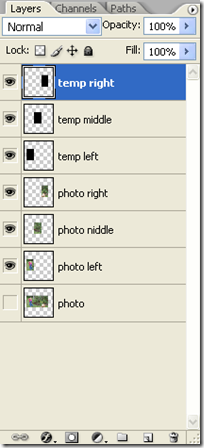

This is how your layers palette should look. (Note I have renamed my layers for easy recognition)
You don’t need the black rectangles for the moment, so click the eye icon on each of their layers to make them invisible.

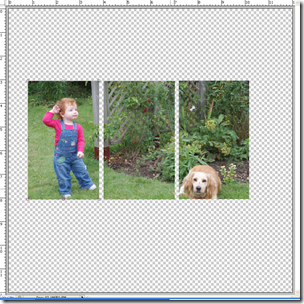

9. You now have your photo cut into three bits. Move the three pieces slightly apart as I have done so that you have a small gap between each piece. We need a little space for the white border we will add later.
10. Now we need to add a drop shadow to each of the photo pieces.
Double click on the left photo layer to open up the layers style palette.
Select Drop Shadow at the top of the list on the left hand side.
Above are the settings I used:
Multiply, black, opacity 75%, distance 27, spread 0, size 38.
Then click OK.
Use these settings and apply the drop shadow to the other two photo piece layers.
11. Now for the fun part!! To be able to distort and warp the photo corners and keep the shadows realistic we need to separate the shadow from the photo piece.
To do this click the left photo piece layer to make it active.
Now right click on the little down arrow head, on the far right of the layer.
This will give you a drop down menu, choose Create Layer.
You will get a message saying that some effects cannot be reproduced…just click OK.
This splits any layers styles that you have used for a layer and puts each one on it’s own individual layer.
The drop shadow will now be on it’s own layer so we can play and distort the photo piece and the shadow will stay unchanged.

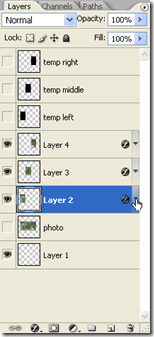

You now have an extra layer with the drop shadow for the photo piece. You need to do this for the other two photo piece layers to separate their drop shadows too.
So repeat section 11 for each of the photo layers.
12. The next thing we need to do is warp the photo corners to make them look curled.
Click on the left photo layer and from the top tool bar select Edit>Transform>Warp.
This will give you a grid around the left photo piece. Drag the bottom left corner up and to the left slightly to make the corner appear curled.
Next move to the top left corner and drag it up and to the right slightly to curl it too. Have a play with this, you can bend them anyway you want, you don’t have to do exactly as I do..it’s your choice.
When you have finished click the tick in the top tool bar to accept.
Repeat this with the other two photo pieces to curl and warp one or more of their corners.
13. Finally we need to add a white border to the photo pieces to finish them. It’s easier to merge the photo pieces and do this in one for all the photo pieces.
Hold down the CTRL key and click on each of the three photo layers to make them all active. Then press CTRL + E to merge them to form one layer.
Click on the icon in the merged layer and you will get the marching ants around the photo pieces.
14. Make a new layer just above the merged photo pieces layer and click on the new layer to make this the active layer.
Now in the top tool bar select Edit> Stroke and use the settings below, then click OK..
This will give you a new layer above the photo pieces with a white border. This is your photo edge.

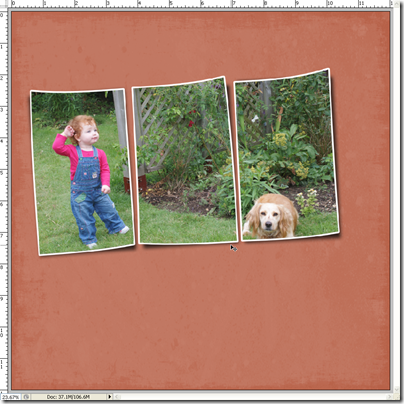

You can now merge the three drop shadow layers, photo layers and white border and transfer to your layout.
Or you can save the template, shadows and white border as a psd file to use again!!!
The beauty of keeping the drop shadows separate is you can still change them to blend with any back ground you add by changing the Opacity of their layers.
So if you find the shadow too harsh for a light background then just lower the opacity or change the blend mode of this layer.
But don’t take my word for it…have a play!!
If you want to download the tutorial in PDF you'll find it here
